TUBITAK - UME METROLOGY LABORATORIES COMPLEX
|
TUBITAK - UME METROLOGY LABORATORIES COMPLEX |
|
|
|
|
Constr. Area |
24,400 sq.m. |

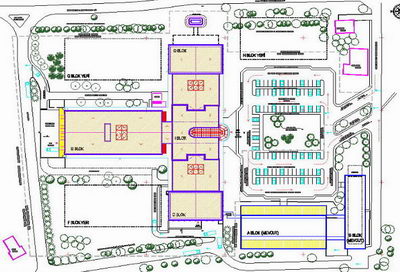

| No.of Blocks | 4 (+ 2 for future development) |
| Client | TUBITAK UME-National Metrology Institute (Owner) (Financed by the World Bank) |
| Services | Mechanical Engineering Design, Preparation of BOQ's, Tech. Specs. & Tender Documents, Tender Consultancy (Arch. concept design: Ates Co.Inc., Complete A/E design : ODTM Co. Inc.) |
| Scope of Design | Heating, ventilation, air conditioning, fire ventilation and pressurization, hot-cold domestic water, waste water, storm water, fire extinguishing (cabinet + sprinkler + CO2), kitchen, piped pressurized air and vacuum, LPG, clean room technologies, laboratory installations, sterile areas pressurization, cold storages, central heating/cooling plants, automatic controls |
| Design Phases | Concept design, preliminary design, final design, tech. details |
| Notes | 70% of the
construction area which is under the ground is generally allocated to
hi-tech Metrology Laboratories (Chemistry – Time &Frequency -
Microwave - Electromagnetic Compatibility - Spectroscopy -
Chromotography - Nuclear Magnetic Resonance - Dimensional Lab.- Vacuum -
Pressure - Ionized Radiation - Acoustics &
Resonance etc.) where very sensitive mechanical designs are required. In
addition to Laboratories; there are Meeting Rooms, a Conference Hall for
500 people, Dining Hall & Cafeteria, Guest Rooms, Central Kitchen,
Fitness Center, Exhibition Hall, Admin. and Mechanical Areas. The design
services have been carried out by ODTM (GEN-TES) with a Professional Liability
Insurance of 1.000.000 USD, which was realized by a national insurance
company for the first time in Turkey.
|
